DIE SPRING SYSTEMS
Die spring requirements should be selected against the working envelope, travel, load expectation, installation condition, and tooling application.

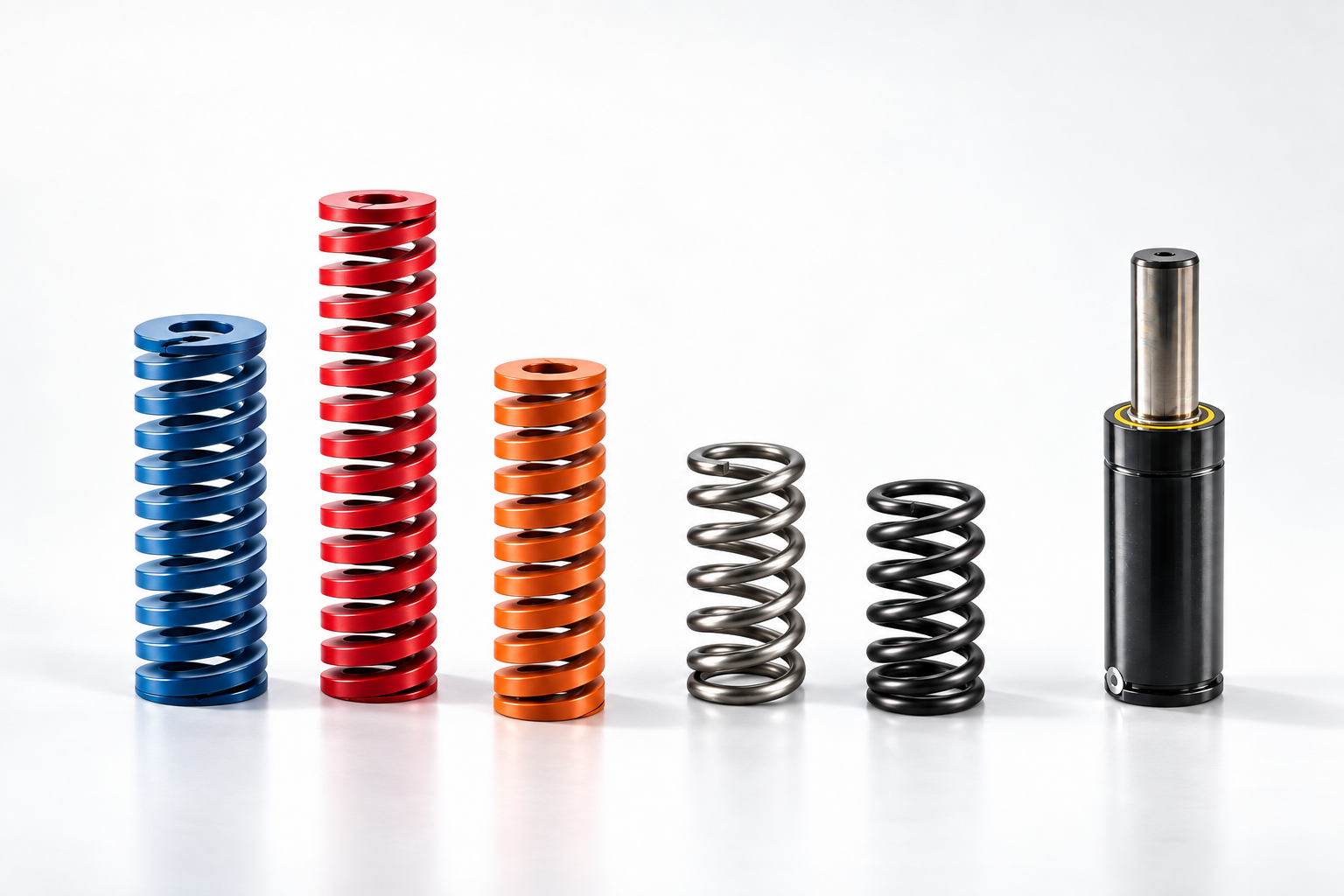

Die spring options
Colour or catalogue reference alone is not enough for final selection. Include the required force, travel, available space, installation arrangement, and operating conditions.
Standard / Compatible
Rectangular Die Springs
Tooling springs selected by load category, travel, installed length, and applicable standard or catalogue reference.
- Spring type
- Rectangular-section die spring
- Selection focus
- Load class, free length, travel, diameter, and installation
- RFQ input
- Reference, dimensions, force requirement, quantity, and application
Standard / Replacement
Coil Springs
Coil spring requirements reviewed from the required force, travel, installation space, and duty conditions.
- Spring type
- Compression coil spring for tooling or fixture use
- Selection focus
- Material, outside diameter, free length, travel, and load
- RFQ input
- Drawing or sample, dimensions, force requirement, and quantity
Application-Defined
Nitrogen Gas Springs
Gas spring requirements reviewed against force, stroke, mounting, working space, and tooling safety conditions.
- Spring type
- Nitrogen gas spring requirement
- Selection focus
- Force, stroke, body size, mounting, and operating environment
- RFQ input
- Reference, dimensions, force and stroke, quantity, and application
Supply and engineering path
Standard or compatible spring requests can begin with a catalogue reference and required quantity. Custom or uncertain applications should include the tool layout, force and travel requirement, installation envelope, cycle conditions, and any current failure mode.
Need a spring selection review?
Send the reference, working envelope, load, travel, quantity, and application so the correct sourcing path can be assessed.
