DRAWING-BASED CNC MANUFACTURING
Custom CNC components are reviewed from the drawing, material, geometry, finish, quantity, and application.

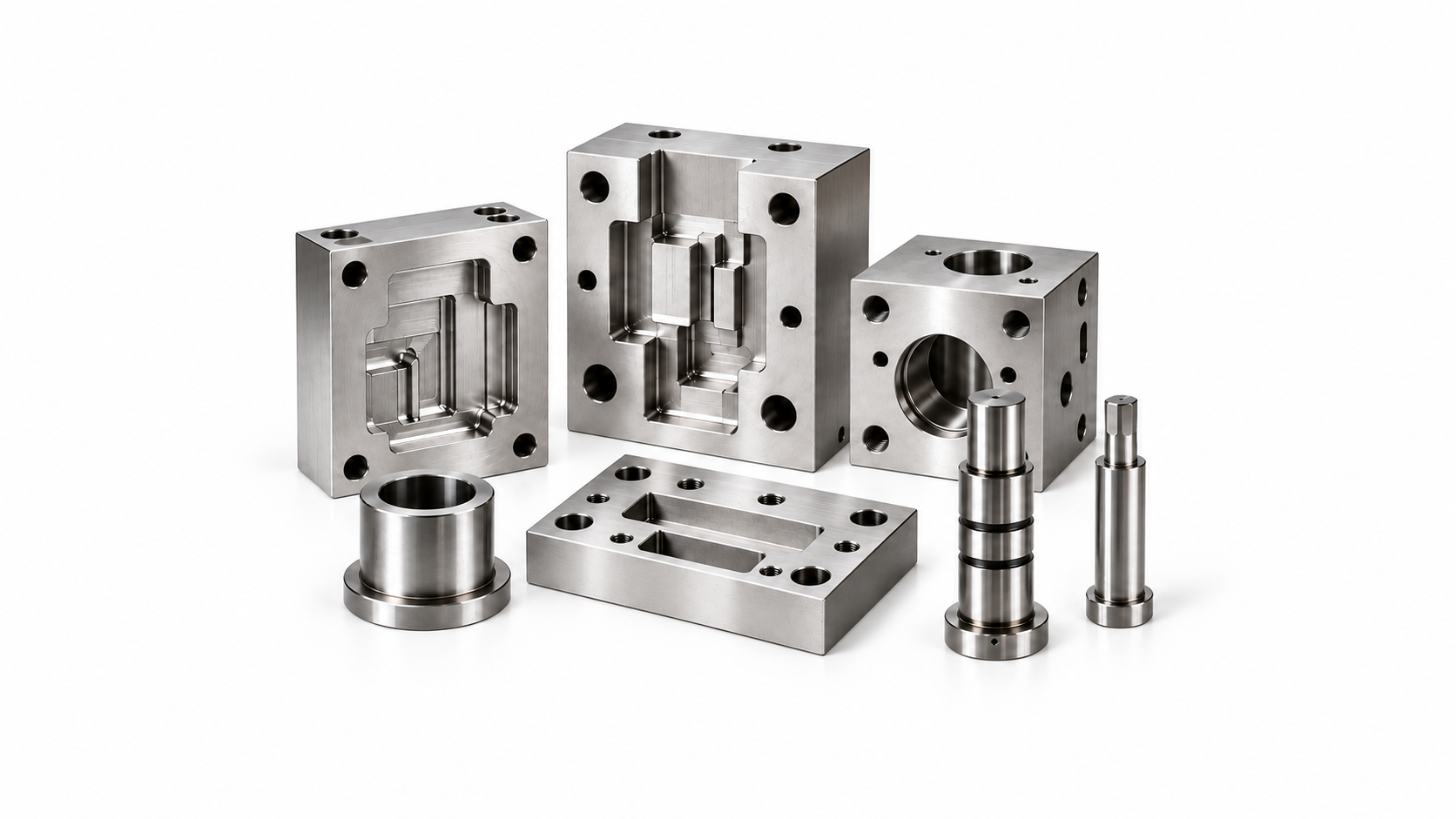

Representative CNC component groups
Select the closest process group, then send the controlled drawing for manufacturability and quotation review.
Drawing-Based Custom
Custom Turned Parts
Cylindrical components with drawing-defined diameters, shoulders, threads, bores, and fits.
- Process
- CNC turning with supporting operations as required
- Options
- Drawing-defined material, finish, threads, and grooves
- RFQ input
- Drawing, revision, quantity, and critical features
Drawing-Based Custom
Custom Milled Components
Prismatic parts, plates, blocks, and profiles defined by the drawing and datum structure.
- Process
- CNC milling with drawing-defined datum control
- Options
- Custom geometry, pockets, holes, threads, material, and finish
- RFQ input
- Drawing, 3D data where available, quantity, and application
Precision-Finished Custom
Ground Precision Parts
Machined components with critical cylindrical or flat surfaces requiring a reviewed grinding route.
- Process
- Machining and precision grinding as required
- Options
- Drawing-defined material, treatment, surface, and datums
- RFQ input
- Drawing, critical surfaces, quantity, and application
Drawing-Based Custom
Pins, Bushings & Sleeves
Precision cylindrical parts for tooling, fixtures, molds, and industrial assemblies.
- Process
- Turning, machining, and finishing according to the drawing
- Options
- Custom material, geometry, fit, surface, and inspection
- RFQ input
- Drawing or sample, mating condition, quantity, and application
Quality verification
Dimensional inspection and documentation are available according to drawing requirements. See Quality Control; material and finish guidance is covered in Materials Engineering.
Send a CNC drawing for review
Include the revision, material, quantity, finish, critical tolerances, application, inspection needs, and delivery target.
